ERN series of Electromagnetic Release Spring-Applied Fail-safe Brake.
Designed for safety-critical applications, they ensure secure braking, low maintenance, and dependable operation in demanding industrial environments
Send Enquiry

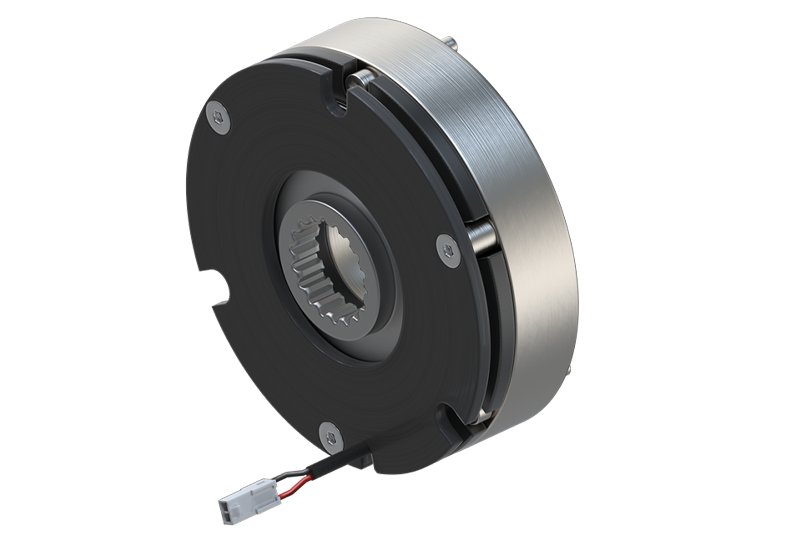

ERN brake
Key Features
Industries & Applications
Boom lifts

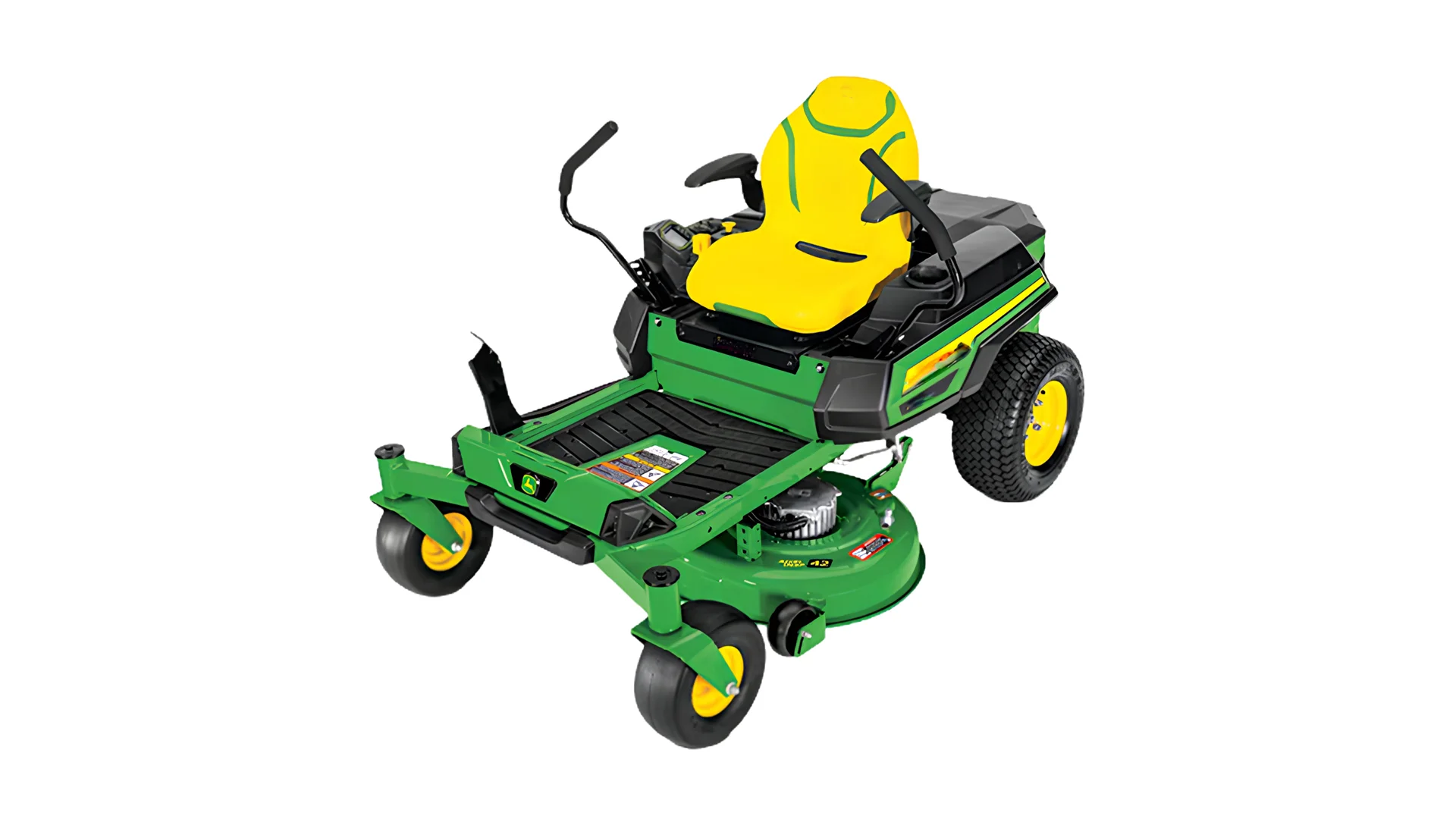

Lawn Mower
Ground Support Vehicle (GSC)
Electric Forklifts

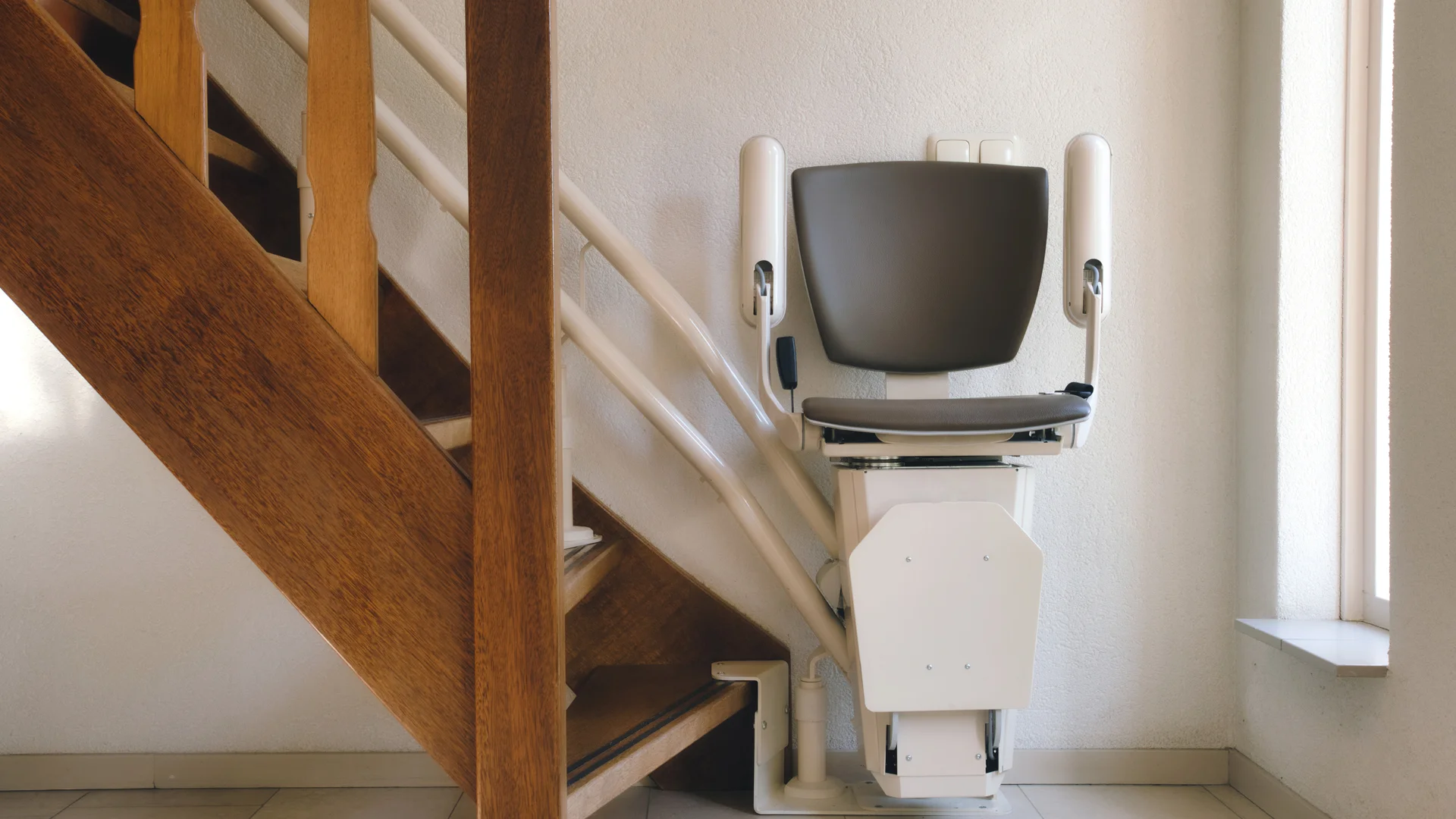

Stair Lifts
Cranes & Hoists
Technical details
|
Description |
Value |
Value |
|---|---|---|
| RATED STATIC TORQUE | Nm | 35 (max) |
| OPERATING VOLTAGE | VDC | 12, 24, 48 (As per customer request) |
| OUTER DIAMETER DA | mm | 0 117 |
| INNER DIAMETER - Ø B |
mm |
0 34 |
| INNER DIAMETER - Ø D | mm | 0 56 |
| TOTAL THICKNESS - C | mm | 36 (max) |
| NOMINAL AIR-GAP-S | mm | 0.15-0.30 |
| MAXIMUM ALLOWABLE AIR-GAP - S | mm | 0.4 |
| MOUNTING SCREWS | Nos | M5 x 3 |
| MOUNTING PCD | mm |
106, 107 (As per customer request) |
|
Description |
Value |
|---|---|
| Type | Spring-applied Brake |
| Application | Parking and emergency braking |
| Rated static torque | 35 Nm (maximum) |
| Operation | DC operated |
| Operating voltage | 12V DC, 24V DC, 48V DC; as per customer request |
| Mounting PCD | 106 mm / 107 mm; as per customer request |
| Manual Release | Optional manual release , hand lever available on request |
