ERC Series Adjustable Electromagnetic Fail-Safe Brakes

Manual release and torque adjustment for demanding
industrial braking applications

Explore Products
Send Enquiry

Send Enquiry

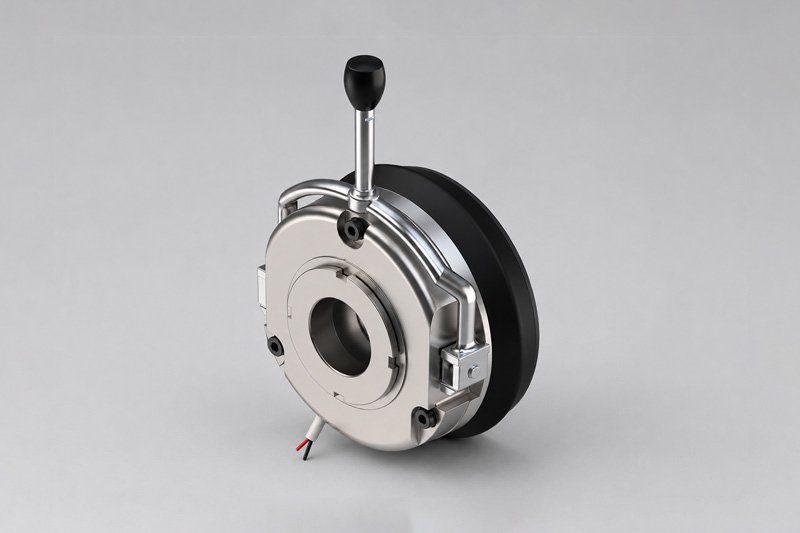

    ERC brake

    Key Features

    • Advanced version with manual release and torque adjustment
    • Spring-applied fail-safe braking operation
    • Electromagnetic release through DC current
    • Torque can be adjusted using the torque adjusting nut
    • Suitable for applications requiring controlled braking torque
    • Dual-surface friction braking design
    • Air-gap and wear monitoring options available
    • Manual release monitoring option available
    • Special protection designs available up to IP65 and IP66
    • Low-noise and corrosion protection designs available on request

    Industries & Applications

    Cranes & Hoists

    Electric Forklifts

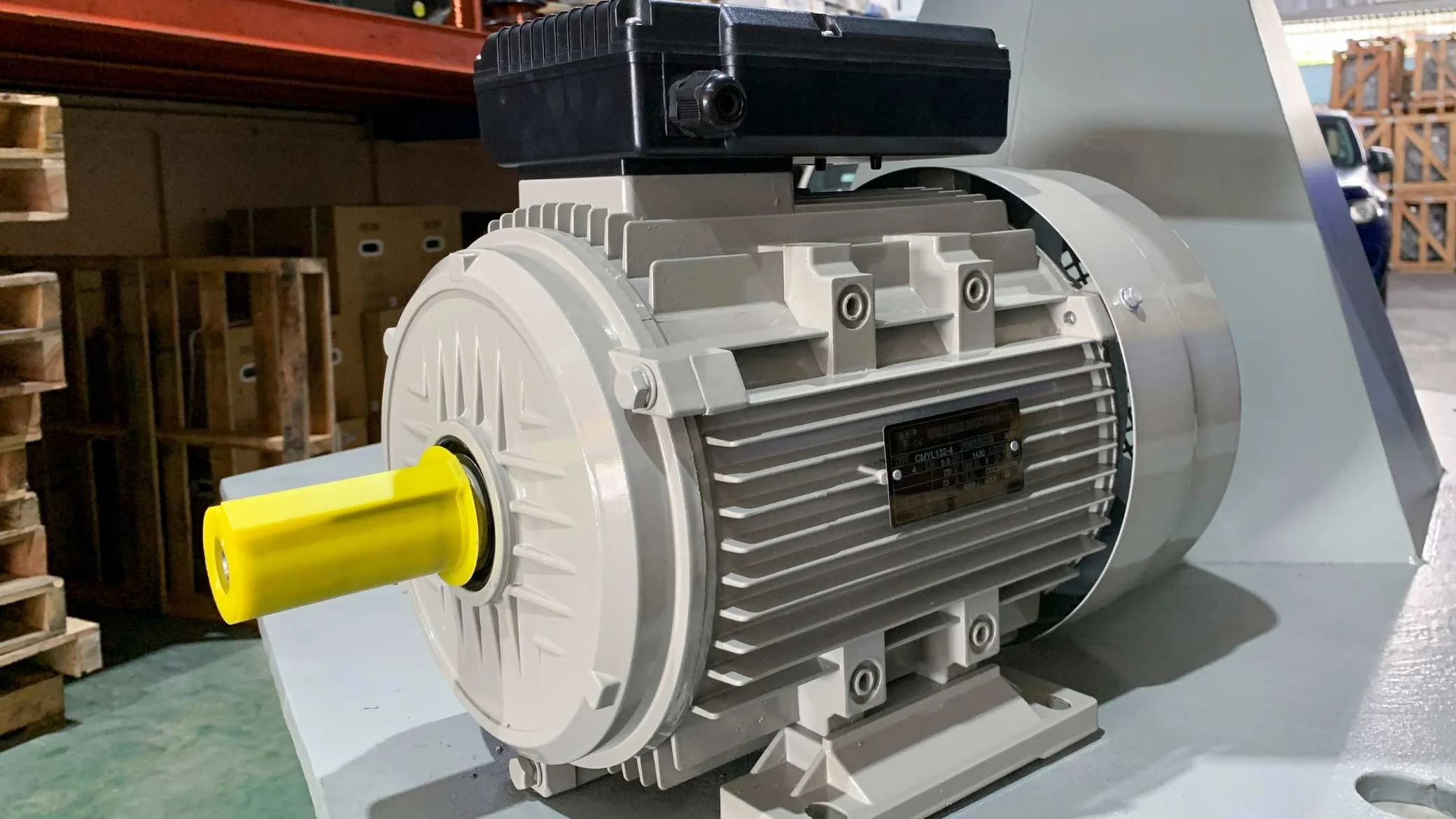

    Brake Motors

    Autonomous Mobile Robots

    Elevators & Escalators

    Order picker

    Textile Machinery

    Ground Support Vehicles (GSC)

    Municipal Vehicles

    Wind Turbines Pitch and yaw drive

    Technical details

    Description

    Value
    Nominal torque range

    1.5 Nm to 1500 Nm
    Maximum holding torque

    Up to 1500 Nm
    Maximum dynamic torque

    Up to 1000 Nm

    Voltage

    12V, 24V, 48V, 96V, 102V, 178V, 190V, 205V, 223V, 257V options

    Type

    		 Electromagnetic release, spring-applied, dual-surface fail-safe brake with manual release and torque adjustment

    Class

    Insulation Class H, 180°C

    Duty cycle

    100% duty cycle with current applied

    Operation

    DC operated

    Manual release

    Available

    Torque adjustment

    Available

    Sizes

    0.5, 01, 02, 3.5, 06, 10, 15, 30, 40, 100

    Monitoring options

    		 Operation monitoring, wear monitoring, manual release monitoring

    Protection options

    Standard, dust cover IP43, sealed IP65, completely sealed IP66

    Power range

    25 W to 250 W
