EAA Series Electromagnetic Single Disc Brakes

Normally-off single disc braking solution for precise industrial motion control
Explore Products
Send Enquiry

Send Enquiry

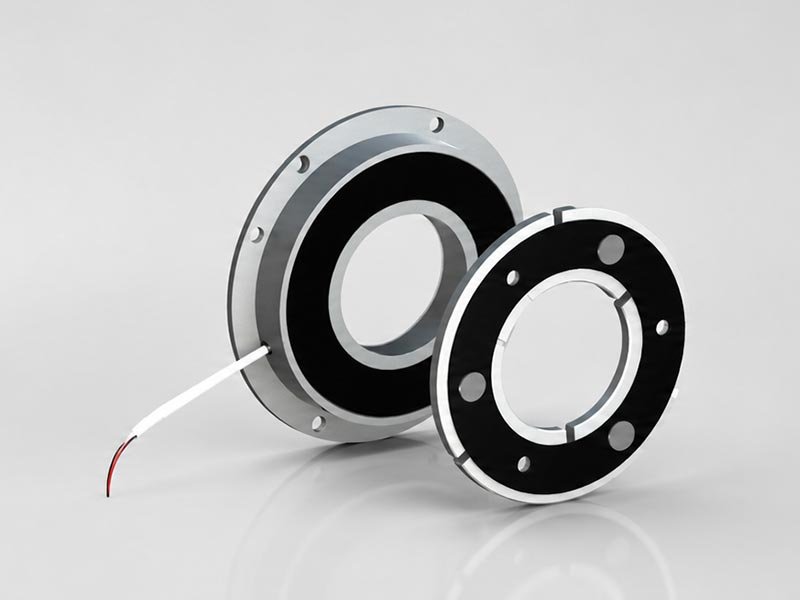

    EAA Brakes

    Key Features

    • Normally-off electromagnetic brake design
    • Single disc friction brake for dry operation
    • Braking torque generated when DC voltage is supplied to the coil
    • Consists of stator assembly and armature assembly
    • Backlash-free torque transmission through diaphragm spring plate
    • High idling speed due to complete separation of friction faces
    • Stationary coil for reliable performance
    • Wear-resistant asbestos-free friction surfaces
    • Specially treated armature for long operating life
    • Rated torque achieved quickly without long running-in process
    • Simple mounting and easy installation
    • Compact design suitable for industrial machinery
    • Manufactured and tested according to DIN VDE 0580
    • CE certified
    • UL certification and ROHS compliance available on request
    • Different voltages, bores and mounting geometries available on request

    Industries & Applications

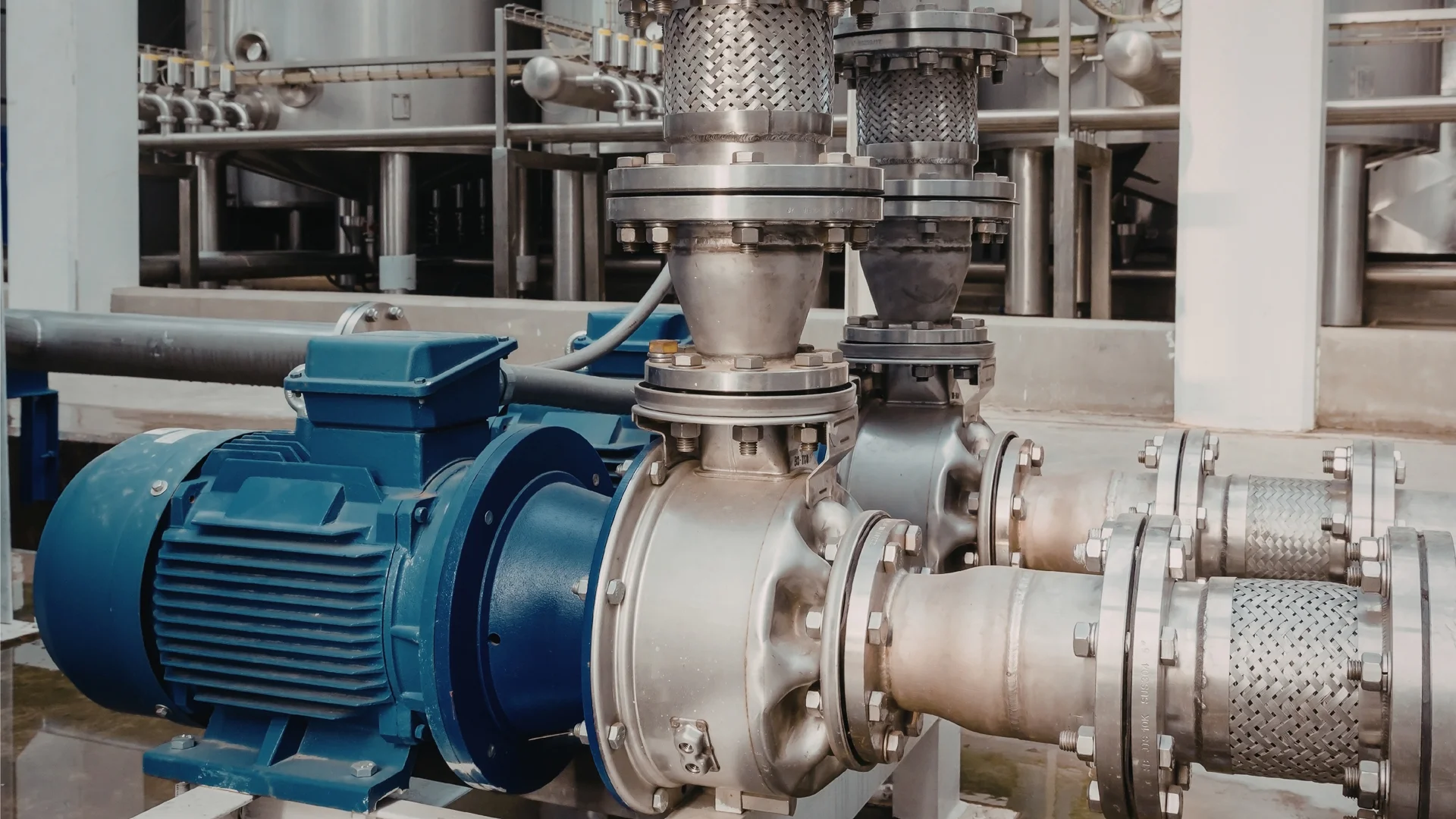

    Industrial machinery

    Packaging Machinery

    Printing Machinery

    Textile Machinery

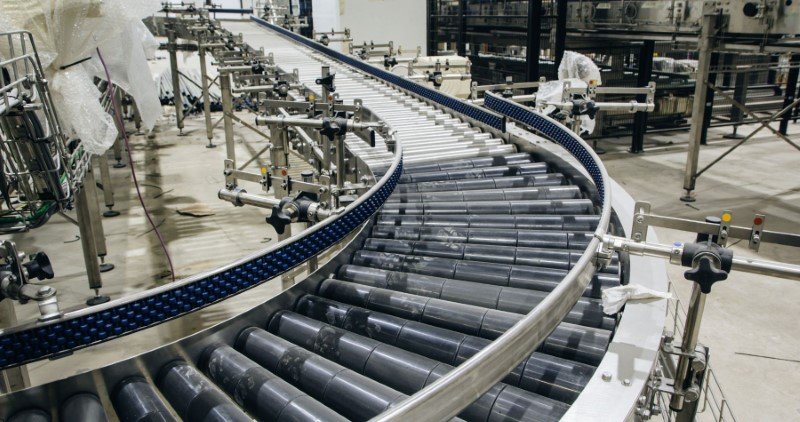

    Conveyors

    Machine tools

    Automation equipment

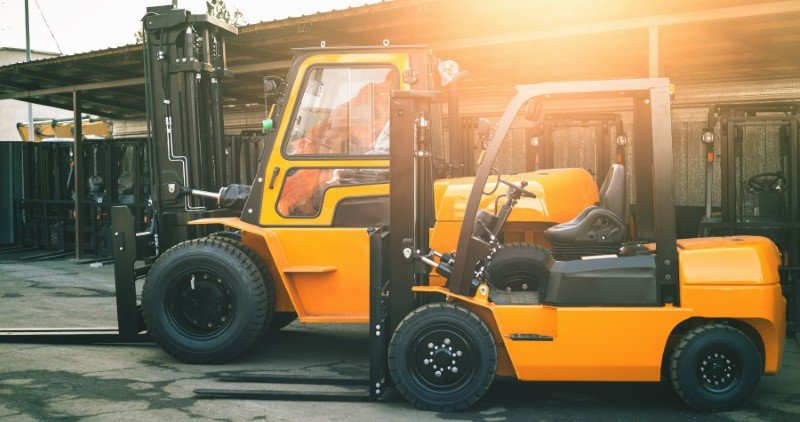

    Material handling systems

    High-speed industrial drives

    Motion control systems

    Technical details

    Description

    Value

    Nominal Torque Range

    		 1.5 Nm to 2880 Nm
    Type Electromagnetic single disc brake
    Brake condition Normally-off / power-on brake
    Operation DC operated
    Standard voltage 24 VDC
    Other voltage options Available on request
    Friction type Friction plate / liner type surface
    Operating condition Dry operation only
    Insulation class Class H, 180°C
    Sizes 0.15, 0.45, 01, 02, 03, 06, 10, 20, 40, 60, 120, 240
    Torque options 1.5, 3.6, 7.5, 15, 30, 60, 120, 240, 480, 750, 1440, 2880 Nm
    Power range 8 W to 113.2 W
    Main assemblies Stator assembly and armature assembly
    Design variants Design 100, Design 101, Design 102
    Certification CE certified; UL and ROHS on request
    Standard compliance DIN VDE 0580
    Optional features Special voltage, special bore, custom mounting, internal flange mounting
