ERG Series Electromagnetic Release Spring-Applied Brakes

Compact dual-surface braking solutions for automation,motors,hoists and material handling systems
Explore Products
Send Enquiry

Send Enquiry

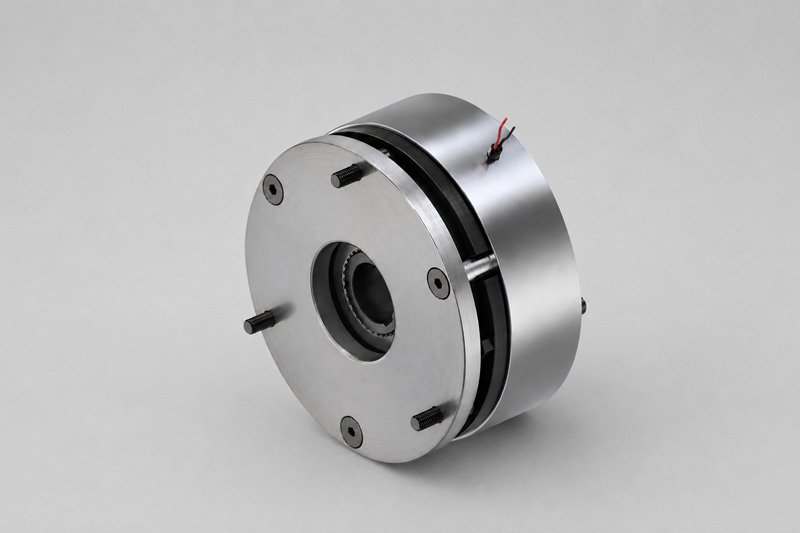

    ERG brake

    Key Features

    • Spring-applied and electromagnetically released brake design
    • Dual-surface friction braking system
    • Compact design with flange for small overall dimensional packaging
    • Brake torque range from 0.12 Nm to 400 Nm
    • Available in 13 sizes: 0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2, 3.5, 6, 10, 15, 30
    • Asbestos-free friction linings for high brake torque, low wear and long working life
    • Torque transmitted between hub and rotor through mating splines
    • Standard voltage: DC 24V; other voltages available on request
    • Thermal Class H, suitable up to 180°C
    • Sizes 0.01 to 0.2 can be mounted on both sides, front or back
    • Manual release optionally available
    • Optional special customized pancake brake designs available

    Industries & Applications

    Stairlifts

    Autonomous Mobile Robots

    Advanced Stadium Cameras

    Electric Forklifts

    Wood Processing Machines

    Cranes & Hoists

    Conveyor technology

    Technical details

    Description

    Value

    Nominal torque range

    0.12 Nm to 260 Nm

    Maximum torque range

    Up to 400 Nm / special customized designs on request

    Static torque options

    		 0.12 Nm, 0.25 Nm, 0.5 Nm, 1 Nm, 2 Nm, 4 Nm, 8 Nm, 16 Nm, 32Nm, 60 Nm, 80 Nm, 150 Nm, 260 Nm

    Type

    Electromagnetic release, spring-applied, dual-surface brake

    Operation

    DC operated

    Standard voltage

    24V DC

    Other voltage options

    205V, 103V for selected sizes; other voltages on request

    Class

    Thermal Class H, 180°C

    Sizes

    0.01 to 30

    Power range

    5 W to 55 W

    Cable length

    Standard 400 mm; other options available on request

    Air gap

    0.1 mm to 0.3 mm depending on size

    Maximum bore

    6 mm to 38 mm depending on size

    Keyway

    As per DIN 6885/1-P9

    Manual release

    Optional

    Mounting

    Sizes 0.01 to 0.2 mountable from front or back

    Special designs

    		 Basic design, manual release design, customized pancake brake configuration
